Dual-Band Low PIM Diplexer 丨Port 1: 380-960 MHz Port 2: 1710-2700 MHz 丨MFG Part No.: 80044A 丨IP67
Model:High Performance 丨Insertion Loss: ≤ 0.2 dB 丨 Isolation: ≥ 80 dB 丨Return Loss/VSWR: ≤-20dB/1.22 丨Average Input Power: 200 W 丨 IP67 Rated, Suitable for Indoor & Outdoor Installation 丨Optional PIM Rating : ≤-155 dBc / ≤-160 dBc 丨Cover all major global 4G LTE & 5G NR frequency bands including n1, n3, n7, n8, n20, n28, n38, n40 and n41, supports widespread mobile network deployment.
$65.74
Dual-Band Low PIM Diplexer 丨Port 1: 690-862 MHz Port 2: 880-960 MHz 丨MFG Part No.: 80108A 丨IP67
Model:High Performance 丨Insertion Loss: ≤ 0.5 dB 丨 Isolation: ≥ 50 dB 丨Return Loss/VSWR: ≤-20dB/1.22 丨Average Input Power: 200 W 丨 IP67 Rated, Suitable for Indoor & Outdoor Installation 丨Optional PIM Rating : ≤-155 dBc / ≤-160 dBc 丨Supported 5G NR Bands: n5, n8, n20, n28
$84.15
Dual-Band Low PIM Diplexer 丨Port 1: 690-806 MHz Port 2: 824-960 MHz 丨MFG Part No.: 80108B 丨IP67
Model:High Performance 丨Insertion Loss: ≤ 0.5 dB 丨 Isolation: ≥ 50 dB 丨Return Loss/VSWR: ≤-20dB/1.22 丨Average Input Power: 200 W 丨 IP67 Rated, Suitable for Indoor & Outdoor Installation 丨Optional PIM Rating : ≤-155 dBc / ≤-160 dBc 丨Supported 5G NR Bands: n5, n8, n20, n28
$84.15
Dual-Band Low PIM Diplexer 丨Port 1: 555-2180 MHz; Port 2: 2300-2700 MHz 丨MFG Part No.: 80286 丨IP67
Model:High Performance 丨Insertion Loss: ≤ 0.4 dB 丨 Isolation: ≥ 60 dB 丨Return Loss/VSWR: ≤-20dB/1.22 丨Average Input Power: 200 W 丨 IP67 Rated, Suitable for Indoor & Outdoor Installation 丨Optional PIM Rating : ≤-155 dBc / ≤-160 dBc 丨Supported 5G NR Bands: n1, n2, n3, n5, n7, n8, n20, n28, n38, n40, n41
$62.16

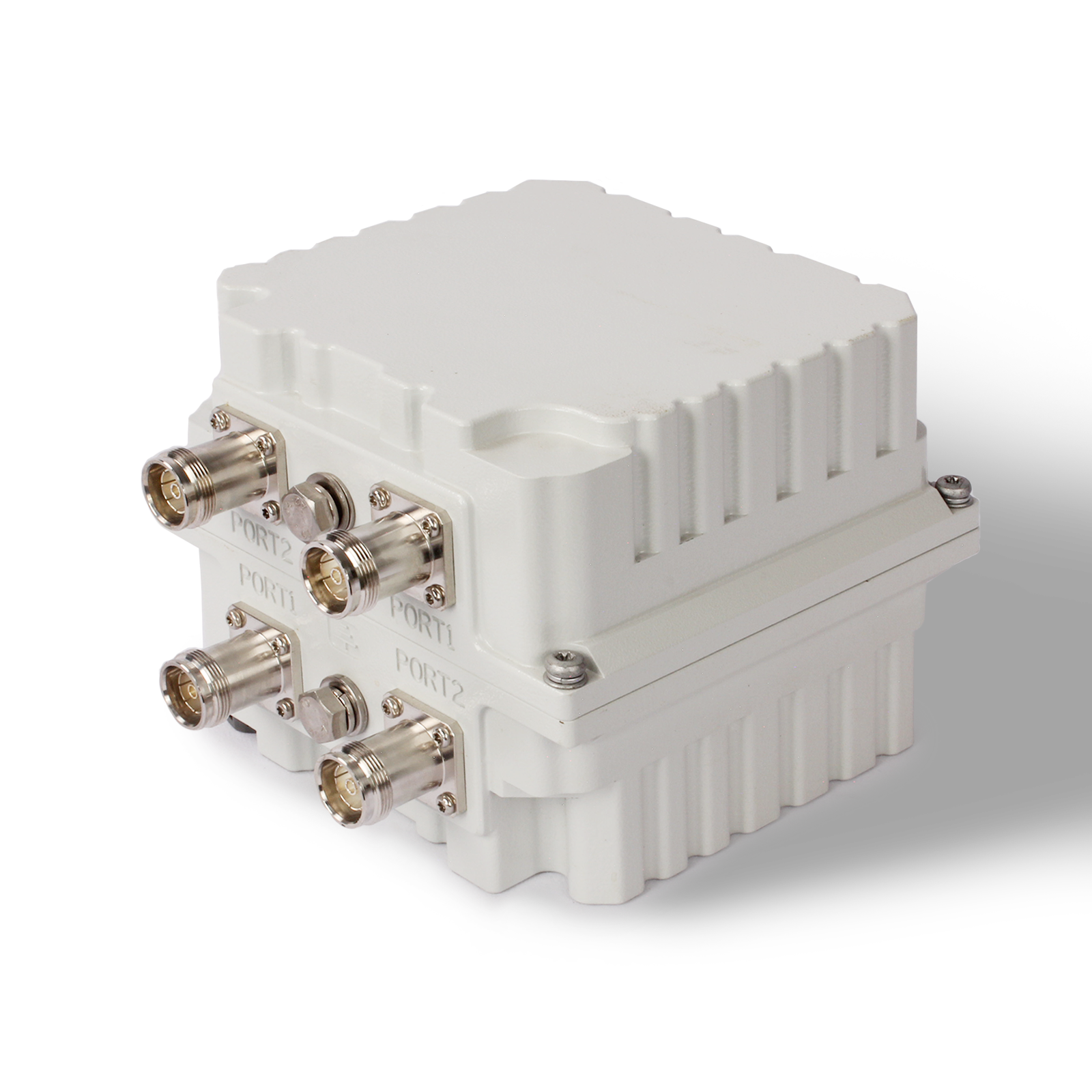

Dual-Band Low PIM Diplexer 丨Port 1: 790-862 MHz; Port 2: 880-960 MHz 丨MFG Part No.: 80641 丨IP67
Model:High Performance 丨Insertion Loss: ≤ 0.4 dB 丨 Isolation: ≥ 50 dB 丨Return Loss/VSWR: ≤-20dB/1.22 丨Average Input Power: 200 W 丨 IP67 Rated, Suitable for Indoor & Outdoor Installation 丨Optional PIM Rating : ≤-155 dBc / ≤-160 dBc 丨Supported 5G NR Bands: n8, n20
$132.09
Dual-Band Low PIM Diplexer 丨Port 1: 1710-1880 MHz Port 2: 2300-2700 MHz 丨MFG Part No.: 80283A 丨IP67
Model:High Performance 丨Insertion Loss: ≤ 0.3 dB 丨 Isolation: ≥ 50 dB 丨Return Loss/VSWR: ≤-20dB / 1.22 丨Average Input Power: 200 W 丨 IP67 Rated, Suitable for Indoor & Outdoor Installation 丨Optional PIM Rating : ≤-155 dBc / ≤-160 dBc 丨Supported 5G NR Bands: n3, n7, n38, n40 & n41
$60.97
Dual-Band Low PIM Diplexer 丨Port 1: 1920-2170 MHz Port 2: 2500-2700 MHz 丨MFG Part No.: 80283B 丨IP67
Model:High Performance 丨Insertion Loss: ≤ 0.3 dB 丨 Isolation: ≥ 50 dB 丨Return Loss/VSWR: ≤ -20dB / 1.22 丨Average Input Power: 200 W 丨 IP67 Rated, Suitable for Indoor & Outdoor Installation 丨Optional PIM Rating : ≤-155 dBc / ≤-160 dBc 丨Supported 5G NR Bands: n1, n7, n38, n41
$60.97
Dual-Band Low PIM Diplexer 丨Port 1: 1427-1880 MHz Port 2: 1920-2400 MHz 丨MFG Part No.: 80281A 丨IP67
Model:High Performance 丨Insertion Loss: 0.2dB typ. 0.4dB max. 丨 Isolation: ≥ 50 dB 丨Return Loss/VSWR: ≤ -19dB / 1.25 丨Average Input Power: 200 W 丨 IP67 Rated, Suitable for Indoor & Outdoor Installation 丨Optional PIM Rating : ≤-155 dBc / ≤-160 dBc 丨Supported 5G NR Bands: n1, n3, n40
$61.89
Dual-Band Low PIM Diplexer 丨Port 1: 1920-2400 MHz Port 2: 2496-2690 MHz 丨MFG Part No.: 80281B 丨IP67
Model:High Performance 丨Insertion Loss: ≤ 0.5 dB max, 0.35dB max (2300/2600) 丨 Isolation: ≥ 50 dB 丨Return Loss/VSWR: ≤ -19dB / 1.25 丨Average Input Power: 200 W 丨 IP67 Rated, Suitable for Indoor & Outdoor Installation 丨Optional PIM Rating : ≤-155 dBc / ≤-160 dBc 丨Supported 5G NR Bands: n1, n40, n41
$61.89
Dual-Band Low PIM Diplexer 丨Port 1: 1710-1880 MHz Port 2: 1920-2200 MHz 丨MFG Part No.: 80530 丨IP67
Model:High Performance 丨Insertion Loss: ≤ 0.3 dB 丨 Isolation: ≥ 50 dB 丨Return Loss/VSWR: ≤ -20 dB / 1.22 丨Average Input Power: 200 W 丨 IP67 Rated, Suitable for Indoor & Outdoor Installation 丨Optional PIM Rating : ≤-155 dBc / ≤-160 dBc 丨Supported 5G NR Bands: n1, n3 and America AWS band n66
$66.14

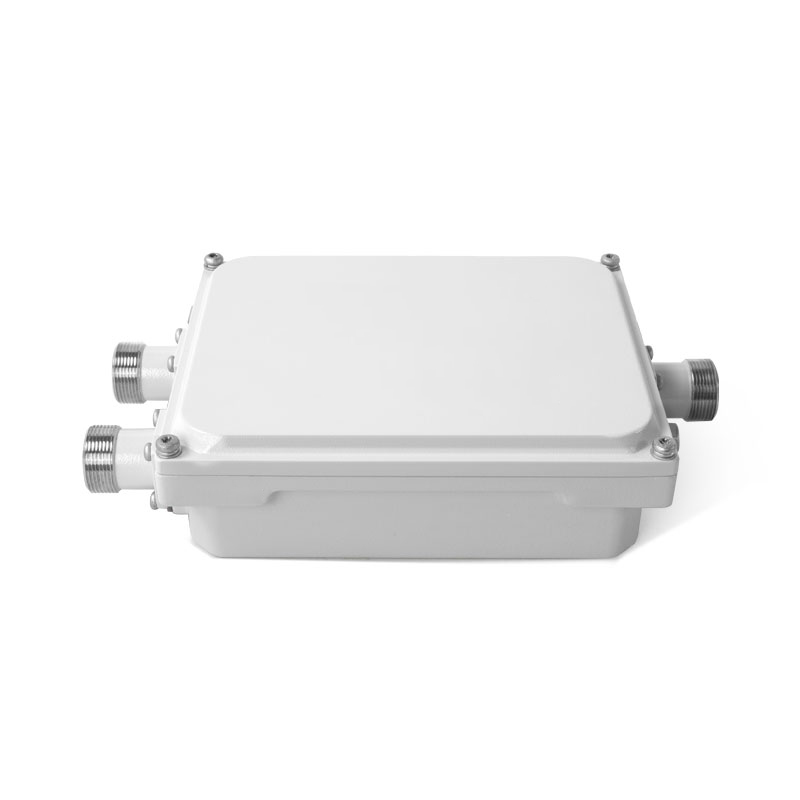

Dual-Band Low PIM Diplexer 丨Port 1: 790-862 MHz Port 2: 880-960 MHz 丨MFG Part No.: 80510 丨IP67
Model:High Performance 丨Insertion Loss: ≤ 0.4 dB 丨 Isolation: ≥ 50 dB 丨Return Loss/VSWR: ≤ -20 dB / 1.22 丨Average Input Power: 200 W 丨 IP67 Rated, Suitable for Indoor & Outdoor Installation 丨Optional PIM Rating : ≤-155 dBc / ≤-160 dBc 丨Supported 5G NR Bands: n8, n20
$84.97
Twin-unit Low PIM Diplexer 丨Port 1: 1695-2200 MHz Port 2: 2300-2700 MHz 丨MFG Part No.: 80677A 丨IP67
Model:High Performance 丨Insertion Loss: ≤ 0.3 dB 丨 Isolation: ≥ 50 dB 丨Return Loss/VSWR: ≤ -20dB / 1.22 丨Average Input Power: 200 W 丨 IP67 Rated, Suitable for Indoor & Outdoor Installation 丨Optional PIM Rating : ≤-155 dBc / ≤-160 dBc 丨Supported 5G NR Bands: n1, n3, n66, n7, n40, n41
$84.32
Twin-unit Low PIM Diplexer 丨Port 1: 1710-1880 MHz Port 2: 1920-2200 MHz 丨MFG Part No.: 80677B 丨IP67
Model:High Performance 丨Insertion Loss: ≤ 0.35 dB 丨 Isolation: ≥ 50 dB 丨Return Loss/VSWR: ≤ -20dB / 1.22 丨Average Input Power: 200 W 丨 IP67 Rated, Suitable for Indoor & Outdoor Installation 丨Optional PIM Rating : ≤-155 dBc / ≤-160 dBc 丨Supported 5G NR Bands: n1, n3, n66
$83.02
Twin-unit Low PIM Diplexer 丨Port 1: 2300-2400 MHz Port 2: 2500-2690 MHz 丨MFG Part No.: 80677C 丨IP67
Model:High Performance 丨Insertion Loss: ≤ 0.3 dB 丨 Isolation: ≥ 50 dB 丨Return Loss/VSWR: ≤ -20dB / 1.22 丨Average Input Power: 200 W 丨 IP67 Rated, Suitable for Indoor & Outdoor Installation 丨Optional PIM Rating : ≤-155 dBc / ≤-160 dBc 丨Supported 5G NR Bands: n7, n40, n41
$81.72

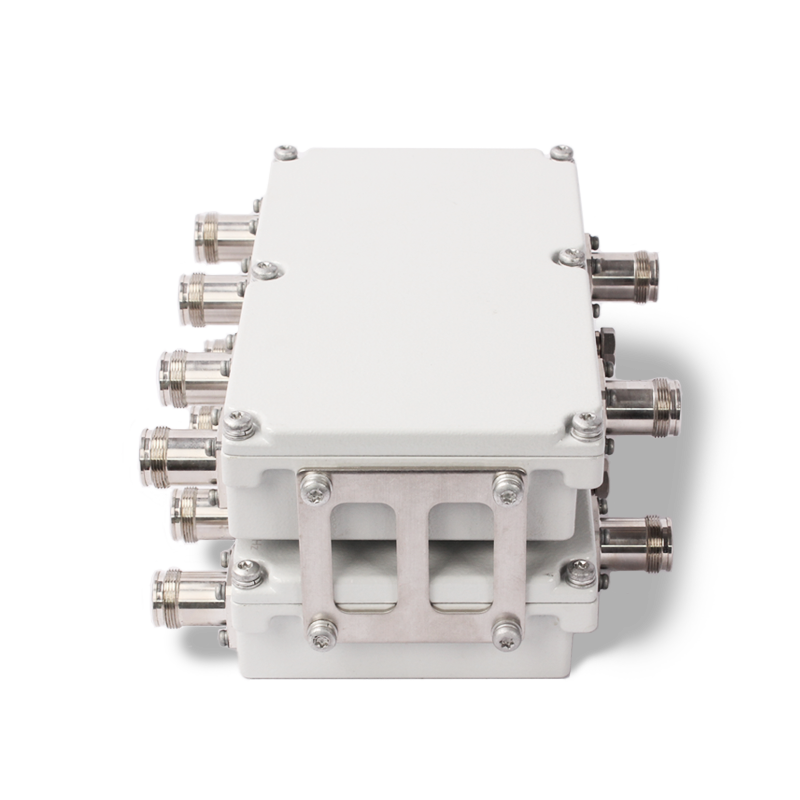

Twin-unit Low PIM Diplexer 丨Port 1: 1695-1780 & 2110-2700 MHz Port 2: 1850-2000 MHz 丨Part No.: 80550
Model:High Performance 丨Insertion Loss: ≤ 0.3 dB 丨 Isolation: ≥ 50 dB 丨Return Loss/VSWR: ≤ -20dB / 1.22 丨Average Input Power: 200 W 丨 IP67 Rated, Suitable for Indoor & Outdoor Installation 丨Optional PIM Rating : ≤-155 dBc / ≤-160 dBc 丨Supported 5G NR Bands: n1, n3, n66, n7, n40, n41
$89.09
No more items
