Product Description: High Performance 丨Insertion Loss: ≤ 0.4 dB 丨 Isolation: ≥ 50 dB 丨Return Loss/VSWR: ≤ -20 dB / 1.22 丨Average Input Power: 200 W 丨 IP67 Rated, Suitable for Indoor & Outdoor Installation 丨Optional PIM Rating : ≤-155 dBc / ≤-160 dBc 丨Supported 5G NR Bands: n8, n20
Product Type: Diplexer
Unit Price: $84.97
List Price: $100.00
All listed prices are ex-factory prices. We recommend Incoterms 2020 FCA for shipments. Please request a separate quote if FCA terms are needed. Other trade terms can also be negotiated upon request.

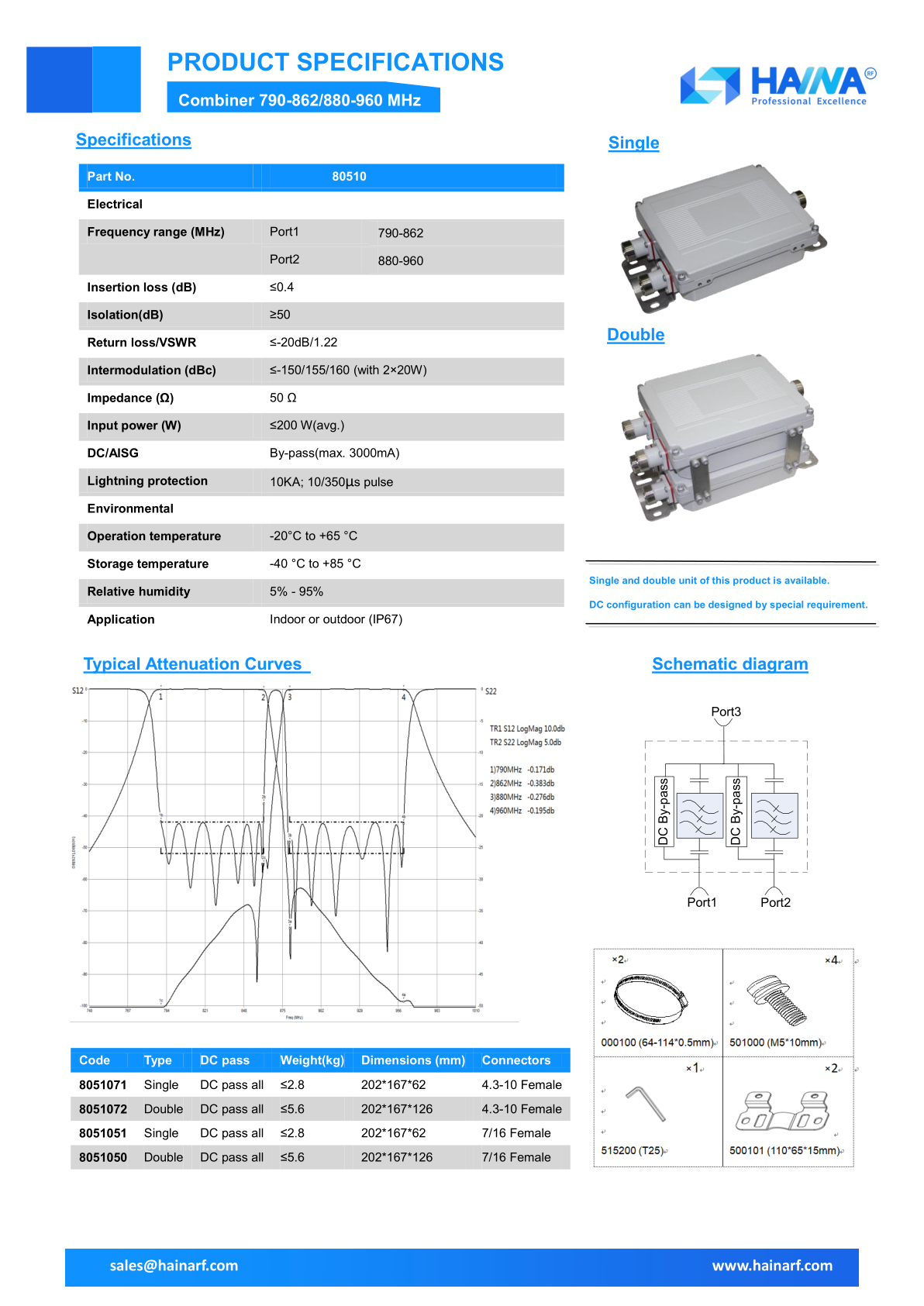

| Product Type | Diplexer |
|---|---|
| Part No. | 80510 |
| Frequency range (MHz) | Port 1: 790-862 MHz; Port 2: 880-960 MHz |
| Insertion loss (dB) | ≤ 0.4 |
| Suppression/Isolation(dB) | ≥ 50 |
| Return loss/VSWR | ≤ -20 dB / 1.22 |
| Impedance (Ω) | 50 Ohm |
| Input power (W) | ≤ 200 W (avg.) |
| Lightning protection | 10KA; 10/350μs pulse |
| Operation temperature | -20°C to +65 °C |
| Application | Indoor or outdoor (IP67) |
| Color | Gray |
| Weight(kg) | Single unit: ≤ 2.8Kg (6.17 lbs); Double units: ≤ 5.6 Kg (12.35 lbs) |
| Dimensions (mm) | Single unit: 202*167*62mm; Double units: 202*167*126mm (without connectors) |
| Supported 5G NR Bands | n8, n20 |
