Product Description: High Performance 丨Insertion Loss: ≤ 0.4 dB 丨 Isolation: ≥ 50 dB 丨Return Loss/VSWR: ≤-20dB/1.22 丨Average Input Power: 200 W 丨 IP67 Rated, Suitable for Indoor & Outdoor Installation 丨Optional PIM Rating : ≤-155 dBc / ≤-160 dBc 丨Supported 5G NR Bands: n8, n20
Product Type: Diplexer
Unit Price: $132.09
List Price: $160.00
All listed prices are ex-factory prices. We recommend Incoterms 2020 FCA for shipments. Please request a separate quote if FCA terms are needed. Other trade terms can also be negotiated upon request.

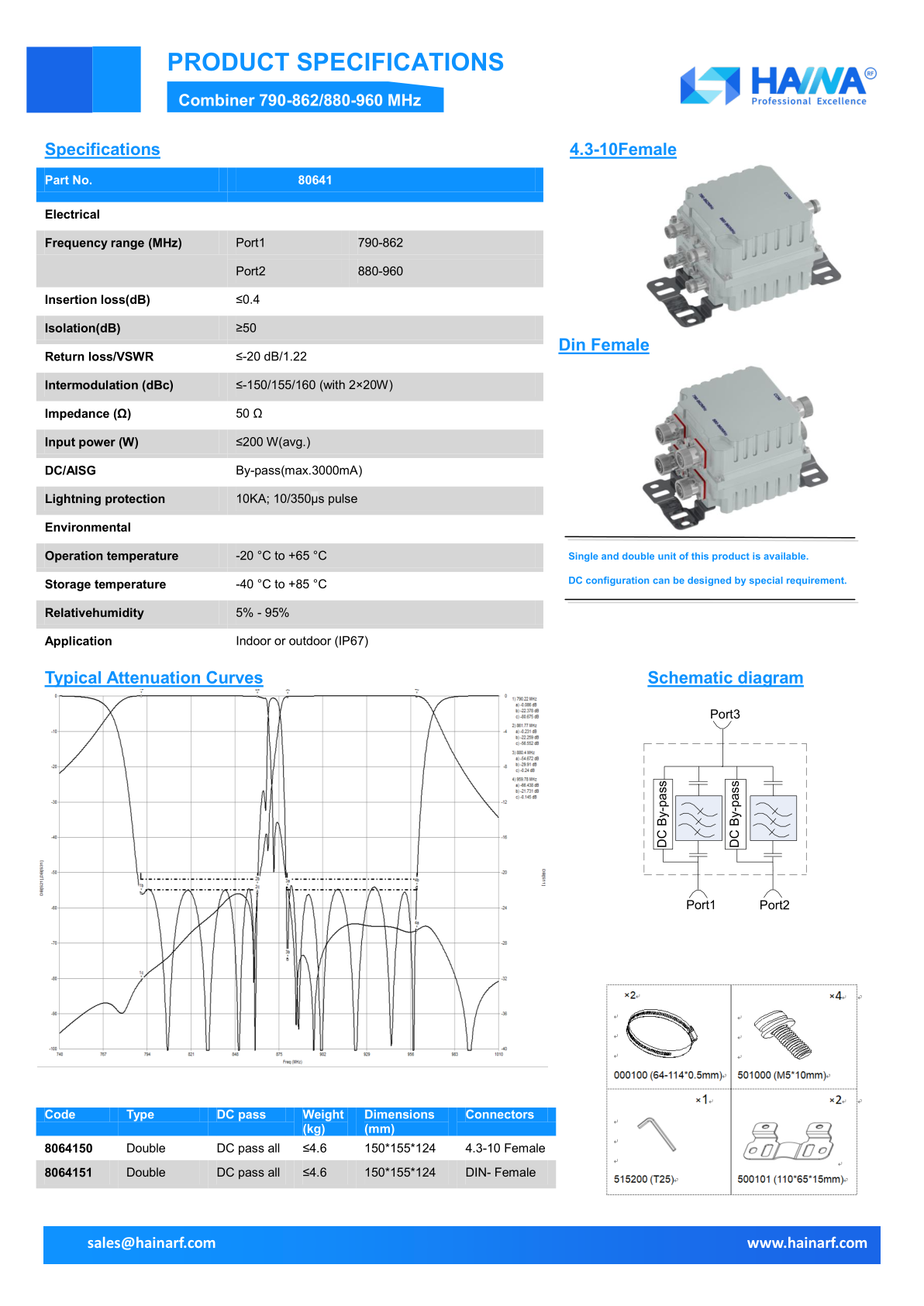

| Product Type | Diplexer | |
|---|---|---|
| Part No. | 80641 | |
| SKU No. | 8064150 for Double units with 4.3-10 Female | 8064151 for Double units with DIN Female |
| Frequency range (MHz) | Port 1: 790-862 MHz; Port 2: 880-960 MHz | |
| Insertion loss (dB) | ≤ 0.4 | |
| Suppression/Isolation(dB) | ≥ 50 | |
| Return loss/VSWR | ≤ -20dB / 1.22 | |
| Impedance (Ω) | 50 Ohm | |
| Input power (W) | ≤ 200 W(avg.) | |
| Lightning protection | 10KA; 10/350μs pulse | |
| Operation temperature | -20°C to +65 °C | |
| Application | Indoor or outdoor (IP67) | |
| Color | Gray | |
| Weight(kg) | Double untis :≤ 4.6Kg (10.14lb) | |

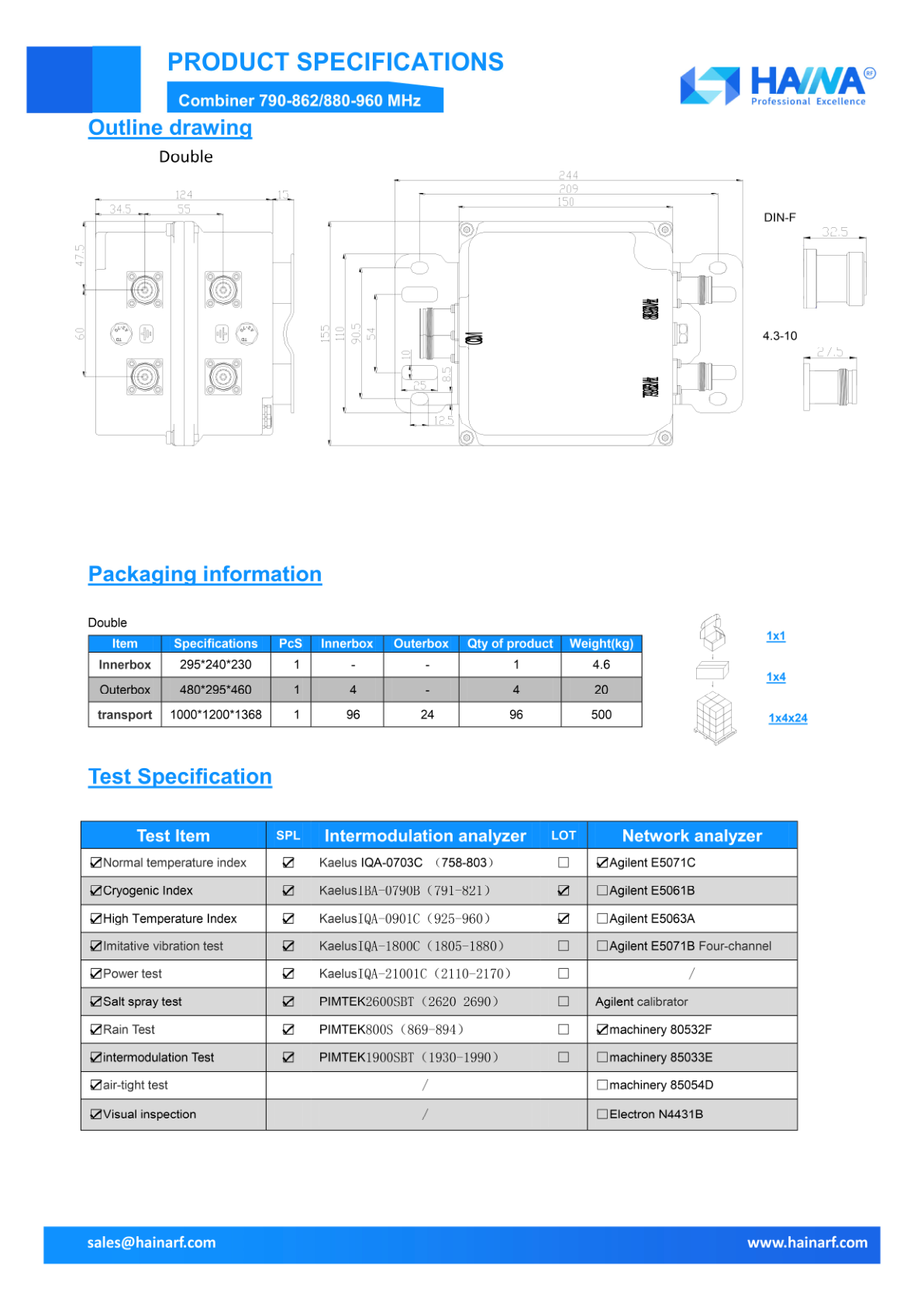

| Dimensions (mm) | Double units: 150*155*124mm (without connectors) | |
| Supported 5G NR Bands | n5, n8, n20 | |
