Product Description: High Performance 丨Insertion Loss: ≤ 3.5 dB 丨 Isolation: ≥ 25 dB 丨Average Input Power: 200 W 丨 IP67 Rated, Suitable for Indoor & Outdoor Installation 丨PIM Performance (Tested under 2×20W Input): Two Options, ≤-150 dBc / ≤-155 dBc
Product Type: Hybrid combiner
Unit Price: $113.73
List Price: $143.00
All listed prices are ex-factory prices. We recommend Incoterms 2020 FCA for shipments. Please request a separate quote if FCA terms are needed. Other trade terms can also be negotiated upon request.

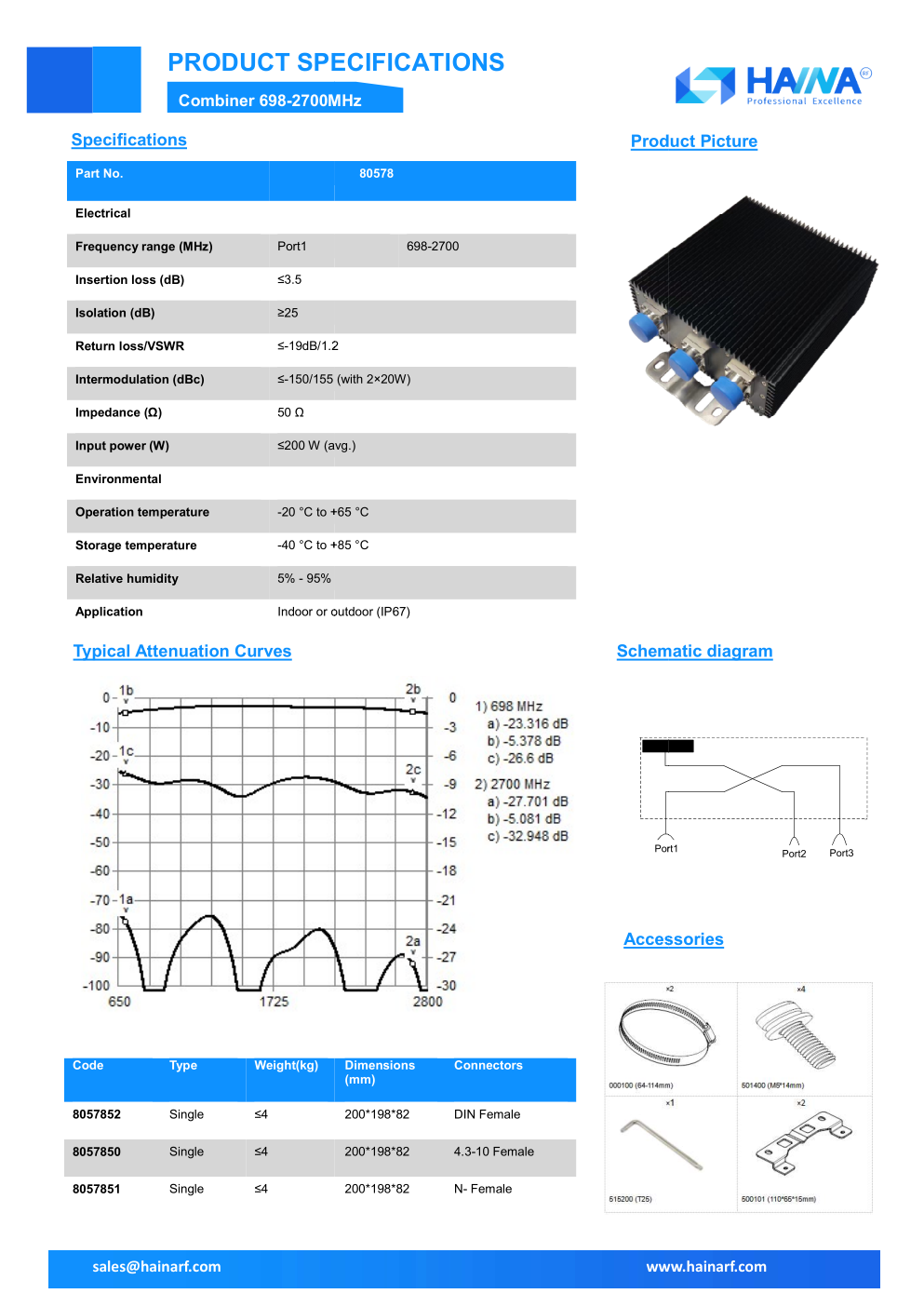

| Product Type | Hybrid combiner | ||
|---|---|---|---|
| Part No. | 80578 | ||
| SKU Code | 8057851 for N-Female | 8057850 for 4.3-10-Female | 8057852 for DIN-Female |
| Frequency range (MHz) | 698-2700 | ||
| Insertion loss (dB) | ≤3.5 | ||
| Rejection/Isolation(dB) | ≥25 | ||
| Return loss/VSWR | ≤-19dB/1.2 | ||
| Impedance (Ω) | 50 Ohm | ||
| Input power (W) | ≤200 W(avg.) | ||
| Type | Single | ||
| Operation temperature | -20°C to +65 °C | ||
| Color | Black | ||
| Application | Indoor or outdoor (IP67) | ||
| Weight(kg) | Single:≤4Kg (8.8 lb) | ||
| Dimensions (mm) | 200*198*82mm (without connectors) | ||
