Filter 2500-2700 MHz（82076C）
Product Description: Low PIM，anti-interference，High performance，N/DIN/4.3-10;IP67
Product Type: Filter
Retail Price: $9999.00
Market Price: $9999.00
Quantity:
Intermodulation (dBc)
Connectors

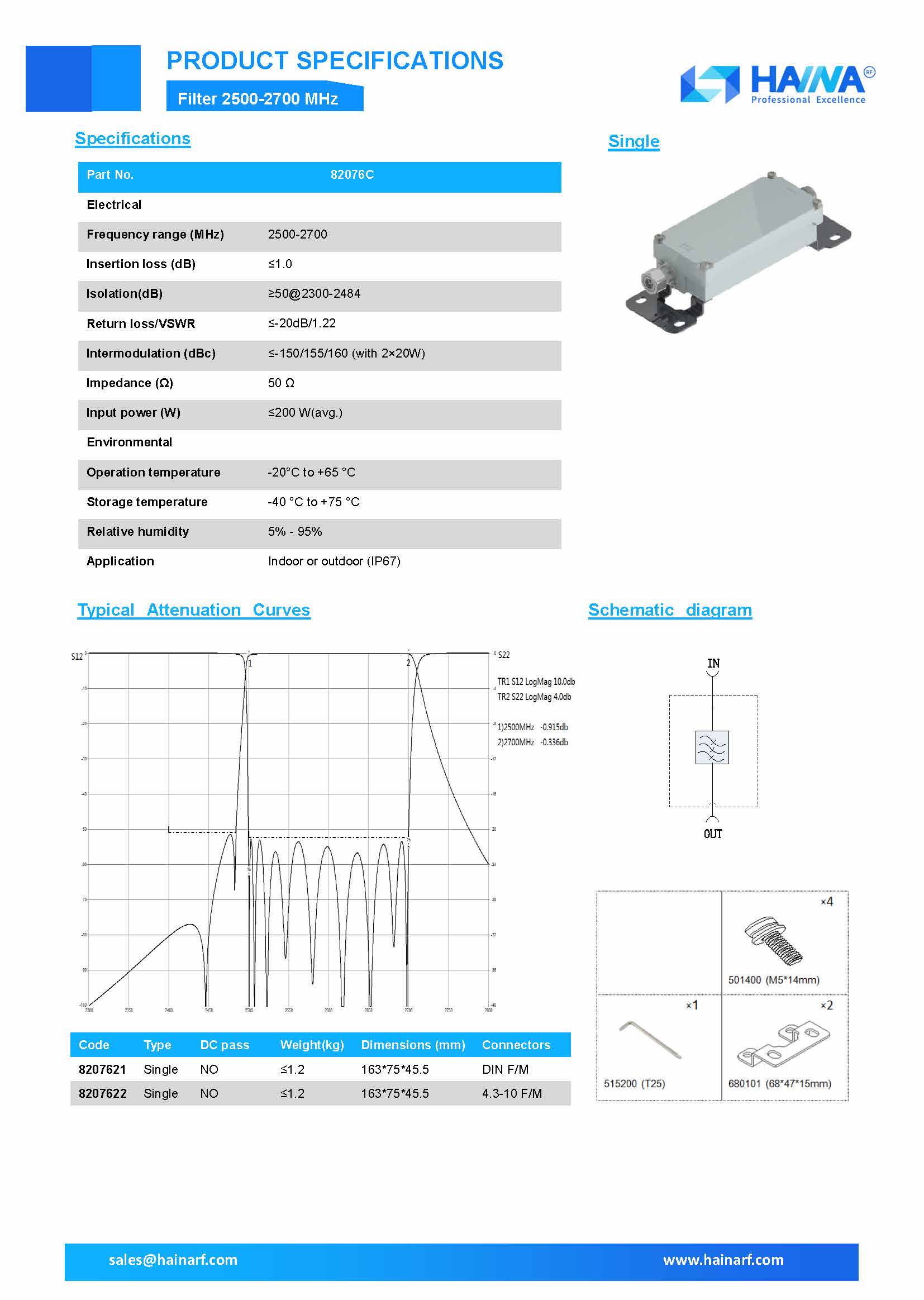

Specification
| Part Number | Filter |
|---|---|
| Part No. | 82076C |
| Frequency range (MHz) | 2500-2700 MHz |
| Insertion loss (dB) | ≤1.0 |
| Ripple(dB) | / |
| Split Loss(dB) | / |
| Branch Flatness | / |
| Suppression/Isolation(dB) | ≥50@2300-2484 |
| Return loss/VSWR | ≤-20dB/1.22 |
| Input power (W) | ≤200 W(avg.) |
| Type | Single |
| DC/AISG | NO DC pass |
| Lightning protection | / |
| Operation temperature | -20°C to +65 °C |
| Application | Indoor or outdoor (IP67) |
| Weight(kg) | Single:≤1.2Kg |

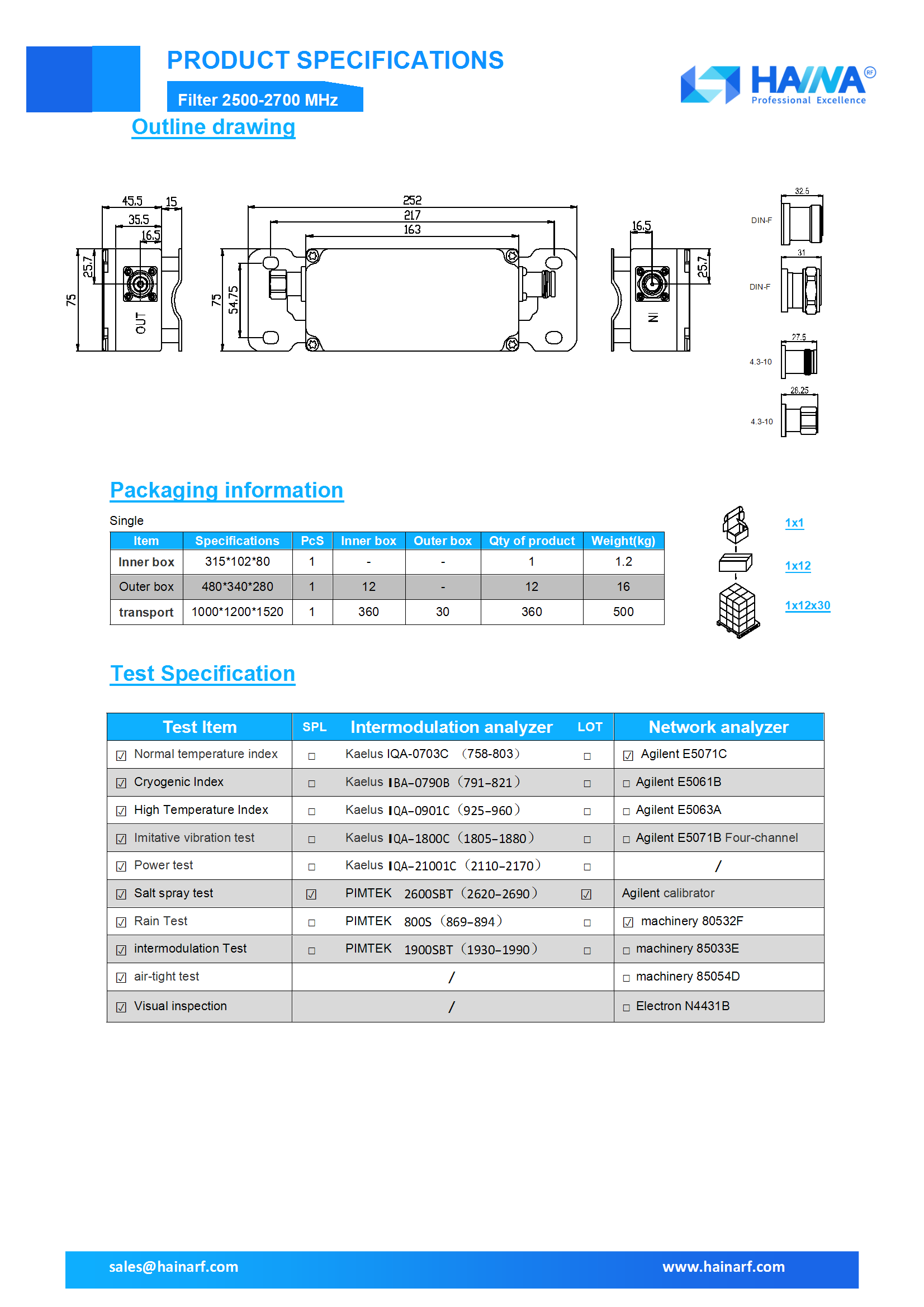

| Dimensions (mm) | Single:163*75*45.5(without connectors) |
