Product Description: Haina’s 87244 series 200-Watt cable loads are intended for wireless applications when extremely low PIM and passive intermodulation is required. A typical application is terminating the unused port of a hybrid coupler used to combine different wireless signals. A broad frequency range of DC - 6000 MHz covers most wireless applications requiring low PIM performance. While air flow over the load is assumed to meet the rated surface temperature.
Product Type: Termination Load
Unit Price: $107.82
List Price: $150.00
All listed prices are ex-factory prices. We recommend Incoterms 2020 FCA for shipments. Please request a separate quote if FCA terms are needed. Other trade terms can also be negotiated upon request.

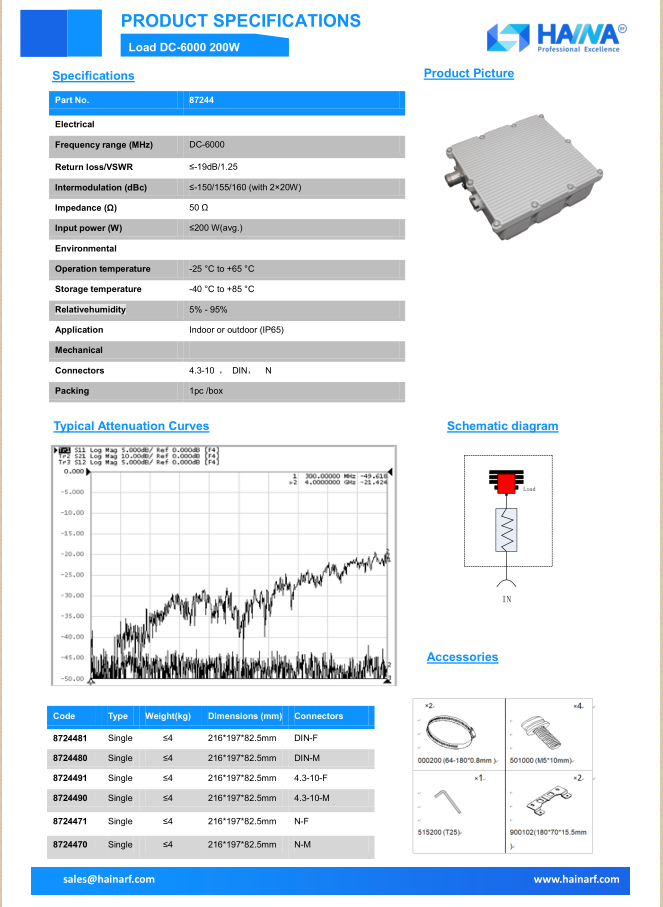

| Product Type | Termination Load | |||||
|---|---|---|---|---|---|---|
| Part No. | 87244 | |||||
| SKU No. | 8724471 for N-Female | 8724470 for N-Male | 8724491 for 4.3-10-Female | 8724490 for 4.3-10-Male | 8724481 for DIN-Female | 8724480 for DIN-Male |
| Frequency range (MHz) | DC-6000 MHZ | |||||
| Return loss/VSWR | ≤-19dB/1.25 | |||||
| Input power (W) | ≤200 W(avg.) | |||||
| Impedance (Ω) | 50 Ohm | |||||
| Type | Single | |||||
| Operation temperature | -20°C to +65 °C | |||||
| Color | Gray | |||||
| Application | Indoor or outdoor (IP65) | |||||
| Weight(kg) | Single:≤4Kg (8.82 lb) | |||||

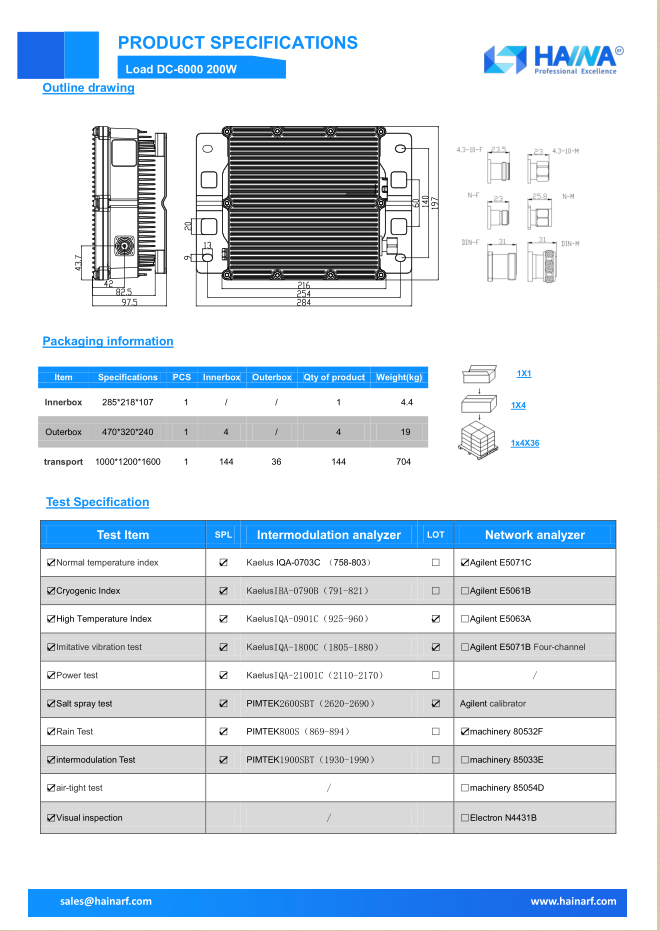

| Dimensions (mm) | 216*197*82.5mm(without connectors) | |||||
