Combiner 1695-1780/2110-2180 MHz （8057154）
产品描述：low cost，High Isolation，indoor (8057154)
产品分类：Indoor Combiner
零售价： ¥9999.00
市场价： ¥9999.00
数量：
Intermodulation (dBc)
Connectors

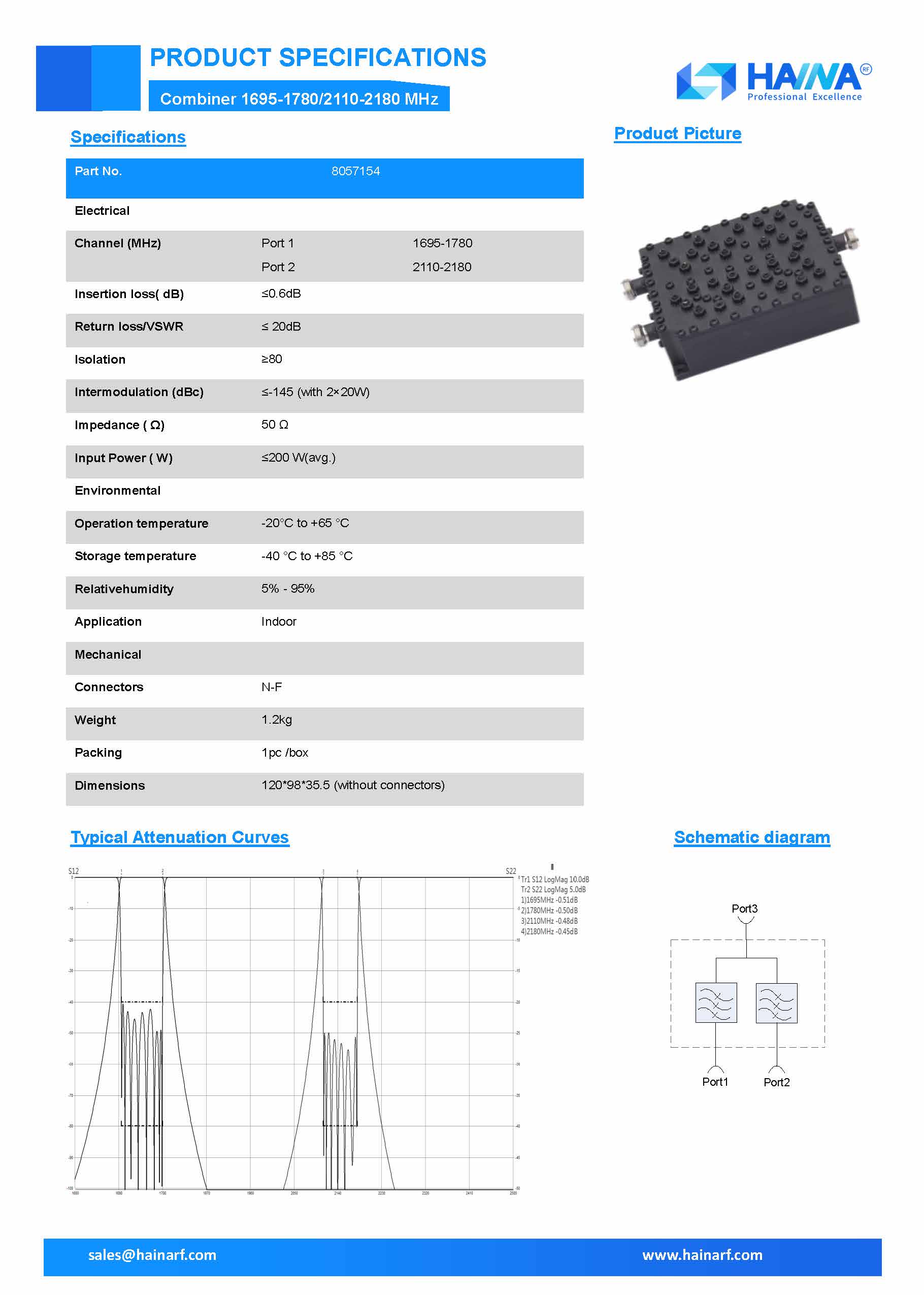

规格
| 零件编号 | Indoor Combiner |
|---|---|
| Part NO. | 8057154 |
| Frequency range (MHz) | Port 1 ：1695-1780 ；Port 2：2110-2180 |
| Insertion loss (dB) | ≤0.6 |
| Ripple(dB) | / |
| Split Loss(dB) | / |
| Branch Flatness | / |
| Suppression/Isolation(dB) | ≥80 |
| Return loss/VSWR | ≤ 20dB |
| Input power (W) | ≤200 W(avg.) |
| Type | Single |
| DC/AISG | / |
| Lightning protection | / |
| Operation temperature | -20°C to +65 °C |
| Application | Indoor |
| Weight(kg) | Single:≤1.2Kg |
| Dimensions (mm) | 120*98*35.5 (without connectors) |
在线询价
