DTMA-700M&900M-2BTS2ANT 丨 connector: Din Female
Product Description: 塔放丨RX:880-915 703-748MHz TX:925-960 758-803MHz丨可任意带宽30M丨DIN Female丨AISG mode 8-pin female
Product Type: 塔放
Retail Price: $4500.00
Market Price: $4800.00
Quantity:
Connectors
Specification
| Part Number | 塔放 | |
|---|---|---|
| 产品大类码 | 86211 | |
| Gain Default | 12dB±1dB | |
| Gain Fluctuation | 0.7dB typ., 1.3dB max | |
| Noise Figure | 1.50dB typ.,1.9dB max | |
| Return loss in by-pass mode | 14dB min | |
| Return loss in normal mode | 18dB min | |
| Max Input Power | <12dBm | |
| Output 1 –dB compression point | 12dBm min | |
| Output IP3 | 25dBmmin | |
| Insert loss in by-passmode | 2.4dB typ., 2.7dB max | |
| Impedance | 50Ω | |
| Insert loss | 0.50dB typ.,0.70dB max@925-960MHz | 0.45dB typ.,0.65dB max@758-803MHz |
| Intermodulation products in RX band | <-110dBm (2 Tx carriers at +43 dBm)（power up）@BTS | |
| Return loss | 18dB min | |
| Average power | 180W | |
| Peak Power | 1.6KW | |
| Operating temperature | -10°C ~ +55 °C | |
| Relative humidity | 5 to 95% | |
| IP rating | Indoor or outdoor (IP67) | |
| MTBF | > 1 000 000 hours (per TMA) | |
| EMC | According to ETS 300 342-3 | |
| DC and Alarm Characteristics | AISG mode | |
| DC supply | 10– 30 V | |
| Operating current per TMA (without RET) | Nom. 280mA at 10 V, Nom. 110 mA at 30V | |
| Alarm management | AISG mode | |
| Material | Aluminium housing | |
| Connectors | RF 丨 DIN 7-16（F）* 4 long neck | AISG丨8-pin female, IEC 60130-9 (Pin 3: RS485B, pin 5: RS485A, pin1&pin 6: 10 – 30V DC, pin 7: DC return, other pins: not connected) |

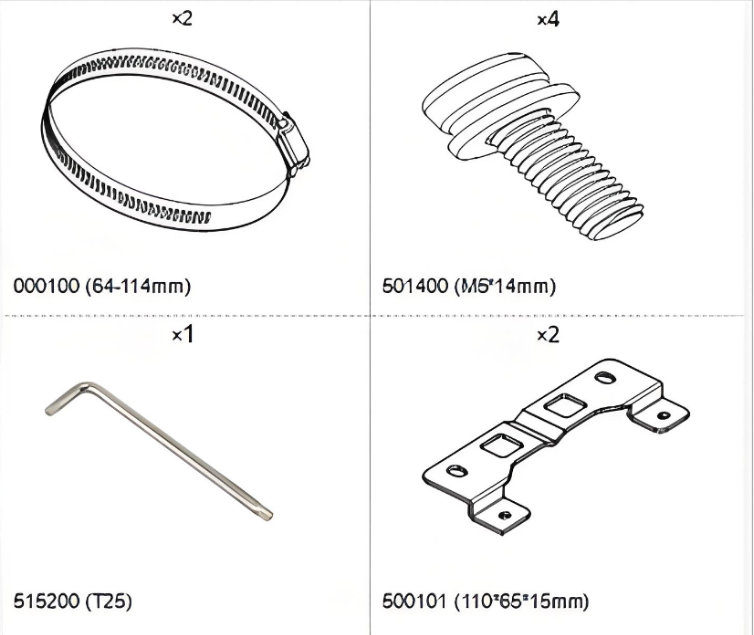

| Mounting | Wall mounting: with 4 screws (max. 8 mm diameter) Mast mounting: with additional clamp set | |
| Weight | 11.2kg | |

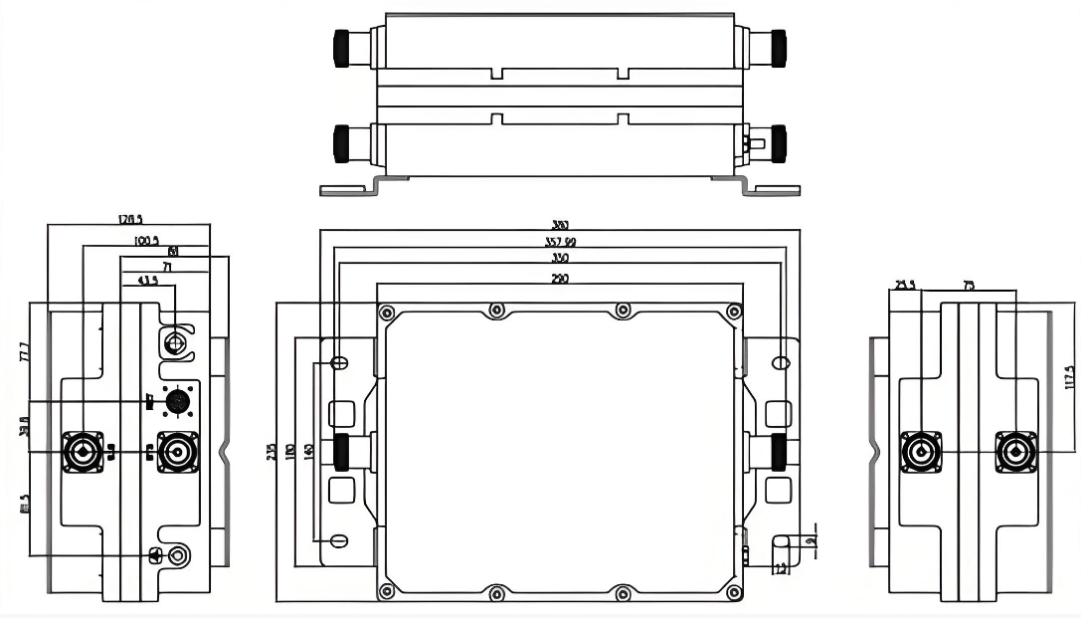

| Dimensions | 290*235*138mm (without connectors, without mounting brackets) | |
